FRP T-Profile
Pultruded Fiberglass T Beam for Structural Bracing & Support
Gallery
FRP T-Profile - Size Reference
FRP T-Profile - Flange & Web Detail
T-Profile Application
T-Profile Installation
PRODUCT OVERVIEW
Premium Pultruded FRP T-Profile for Structural Applications
Our pultruded FRP T-profile is manufactured through a continuous pultrusion process, producing a high-strength fiberglass T-beam with exceptional structural properties. The T-shape consists of a vertical web and horizontal flange, engineered to provide excellent load-bearing capacity in bending and compression applications.
The T-profile offers significant advantages over traditional steel T-beams including complete corrosion resistance, electromagnetic transparency, and substantial weight savings. At only 25% of steel's weight, it dramatically reduces installation costs and structural loading requirements while maintaining superior mechanical performance.
Standard T-profiles are available with flange widths and heights ranging from 25 mm to 150 mm, with web thicknesses from 4 mm to 12 mm. Ideal for structural bracing, support frames, equipment platforms, and civil engineering applications where corrosion resistance and lightweight construction are critical.
High-quality pultruded FRP profile

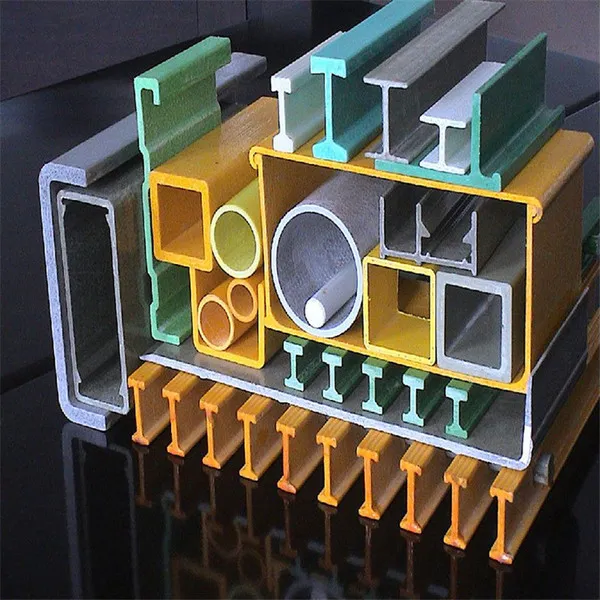

Specifications
Specifications
Technical Specs
Dimensiones
Available in standard lengths and custom sizes.
| Parameter | Value |
|---|---|
| Material | E-Glass Fiber / Polyester or Vinyl Ester Resin |
| Tensile Strength | ≥ 320 MPa |
| Flexural Modulus | ≥ 22 GPa |
| Density | 1.8 - 2.0 g/cm³ |
| Glass Content | 65% - 75% by weight |
| Service Temperature | -50°C to +200°C |
| Barcol Hardness | ≥ 45 |
| Flammability Rating | Class 1 (BS 476) / V-0 (UL 94) |
Features
Features & Benefits
Features
Exceptional Structural Strength
The T-shape provides excellent load-bearing capacity in bending, compression, and torsion. Engineered unidirectional fiber orientation delivers maximum strength along the longitudinal axis.
Corrosion & Chemical Resistance
Impervious to moisture, saltwater, acids, alkalis, and industrial chemicals. Ideal for harsh environments where steel T-beams would rapidly corrode.
Lightweight & Easy Installation
Weighs only one-quarter of equivalent steel T-sections, enabling faster installation with lighter lifting equipment and reduced labor costs.
Electrically Non-Conductive
Zero electrical conductivity and non-magnetic properties make it safe for use near electrical equipment, substations, and sensitive instrumentation.
Low Thermal Conductivity
Does not conduct heat like metal profiles, reducing thermal bridging in building envelopes and improving energy efficiency in structures.
Extended Service Life
With proper UV protection, FRP T-profiles provide 20+ years of maintenance-free service in outdoor environments, significantly outperforming coated steel.
Applications
Applications

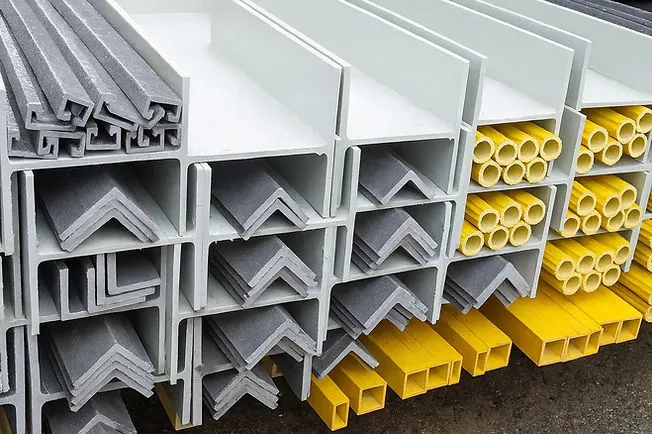

Water Treatment
Structural bracing, walkway supports, and tank platforms in water and wastewater facilities

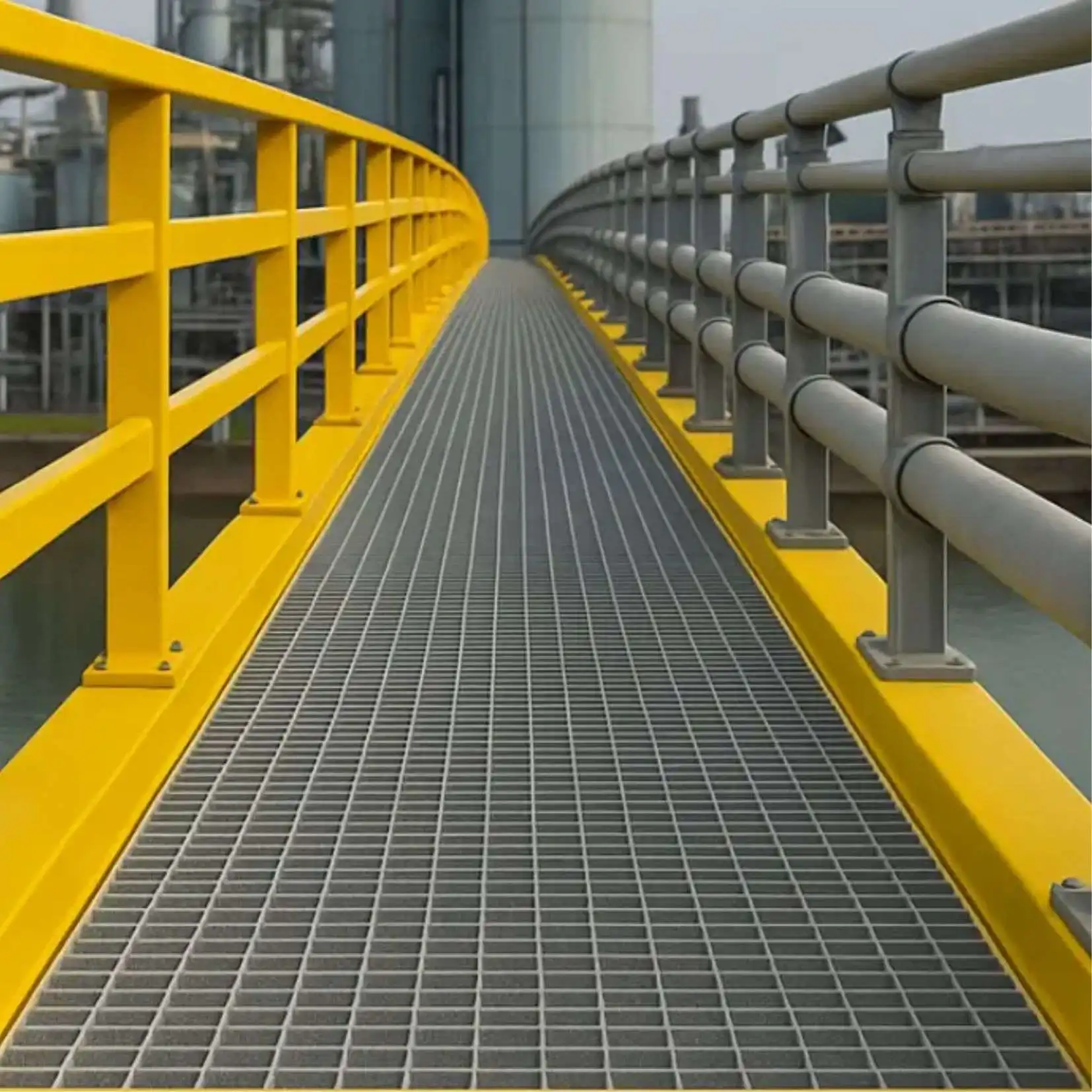

Construction & Building
Lightweight structural frames, equipment supports, and seismic bracing in commercial buildings
Chemical Processing
Corrosion-resistant structural members for chemical plant platforms and pipe supports
Technical Specifications
Size charts, load data and material properties
