PRODUCT
FRP Square Tube
Pultruded Fiberglass Square Tubing for Lightweight Structural Framing and Support
Gallery

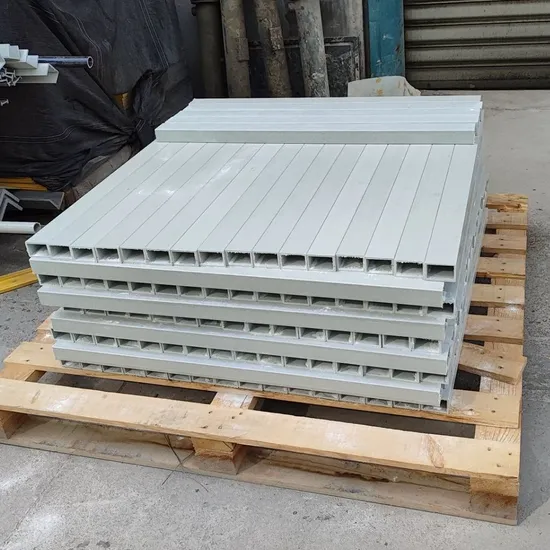

FRP Square Tube Close-up
Square Tube Cross Section
Structural Frame Application
FRP Square Tube Product Range
OVERVIEW
Premium FRP Pultruded Square Tubing
Our FRP square tubes are manufactured using the continuous pultrusion process, producing hollow structural sections with exceptional strength-to-weight ratios. The combination of E-glass fiber reinforcement and high-performance resin systems creates a durable, corrosion-resistant product that outperforms traditional steel and aluminum square tubing in demanding environments.
Available in a wide range of standard sizes with wall thicknesses from 3mm to 10mm, these square tubes offer excellent torsional rigidity and dimensional stability. The smooth exterior finish and consistent wall thickness make them ideal for structural framing, equipment supports, handrail systems, and framework applications where both strength and aesthetics matter.
With a fiberglass content of 60-70%, our pultruded square tubes deliver mechanical properties comparable to structural steel at a fraction of the weight. The material is naturally resistant to corrosion, chemicals, and moisture, eliminating the need for protective coatings and reducing long-term maintenance costs significantly.
High-quality pultruded FRP profile
Specifications
Specifications
Technical Specifications
Dimensiones
Comprehensive range of standard square tube sizes with various wall thickness options.
| Parameter | Value |
|---|---|
| Material | E-Glass Fiber / Polyester or Vinyl Ester Resin |
| Fiber Content | 60-70% by Weight |
| Tensile Strength (Longitudinal) | 207 MPa (30,000 psi) |
| Flexural Strength (Longitudinal) | 207 MPa (30,000 psi) |
| Flexural Modulus | 11 GPa (1.6 × 10⁶ psi) |
| Compressive Strength (Longitudinal) | 276 MPa (40,000 psi) |
| Density | 1.9 g/cm³ |
| Water Absorption | < 0.5% by Weight |
Features
Features & Benefits
Features & Benefits
Outstanding Corrosion Resistance
FRP square tubes are completely impervious to rust and resistant to a wide range of chemicals, acids, and salts. Ideal for wastewater treatment plants, chemical processing facilities, and coastal installations where metal tubing fails prematurely.
High Torsional Rigidity
The hollow square cross-section provides excellent resistance to twisting and bending forces. Perfect for structural frames, machine guards, and equipment supports requiring dimensional stability under load.
Thermal & Electrical Insulation
Naturally electrically non-conductive and thermally insulating. Eliminates grounding concerns in electrical applications and reduces heat transfer in thermal management systems.
Low Maintenance Requirements
No painting, galvanizing, or protective coatings needed. The inherent corrosion resistance eliminates recurring maintenance costs and extends service life in harsh environments.
Easy Fabrication & Handling
Lightweight sections can be cut, drilled, and assembled using standard tools. The material's machinability allows for on-site modifications without specialized equipment.
UV & Weather Resistance
UV-stabilized resin formulations ensure long-term outdoor performance. Resistant to degradation from sunlight, moisture, freeze-thaw cycles, and extreme temperature variations.
Applications
Applications
Structural Framing
FRP square tubes provide lightweight, corrosion-resistant structural framing for industrial buildings, platforms, and mezzanines.
Handrail & Railing Systems
Non-corrosive square tubing for handrails, guardrails, and safety barriers in chemical plants and marine facilities.
Solar & Renewable Energy
Rust-proof square tubing for solar panel mounting frames, tracker structures, and renewable energy infrastructure.
Water & Wastewater
Corrosion-proof tubing for treatment plant structures, walkways, platform supports, and equipment enclosures.
