FRP Pultruded Channel
High-Strength Fiberglass C Channel & U Channel Profiles for Structural Applications
Gallery

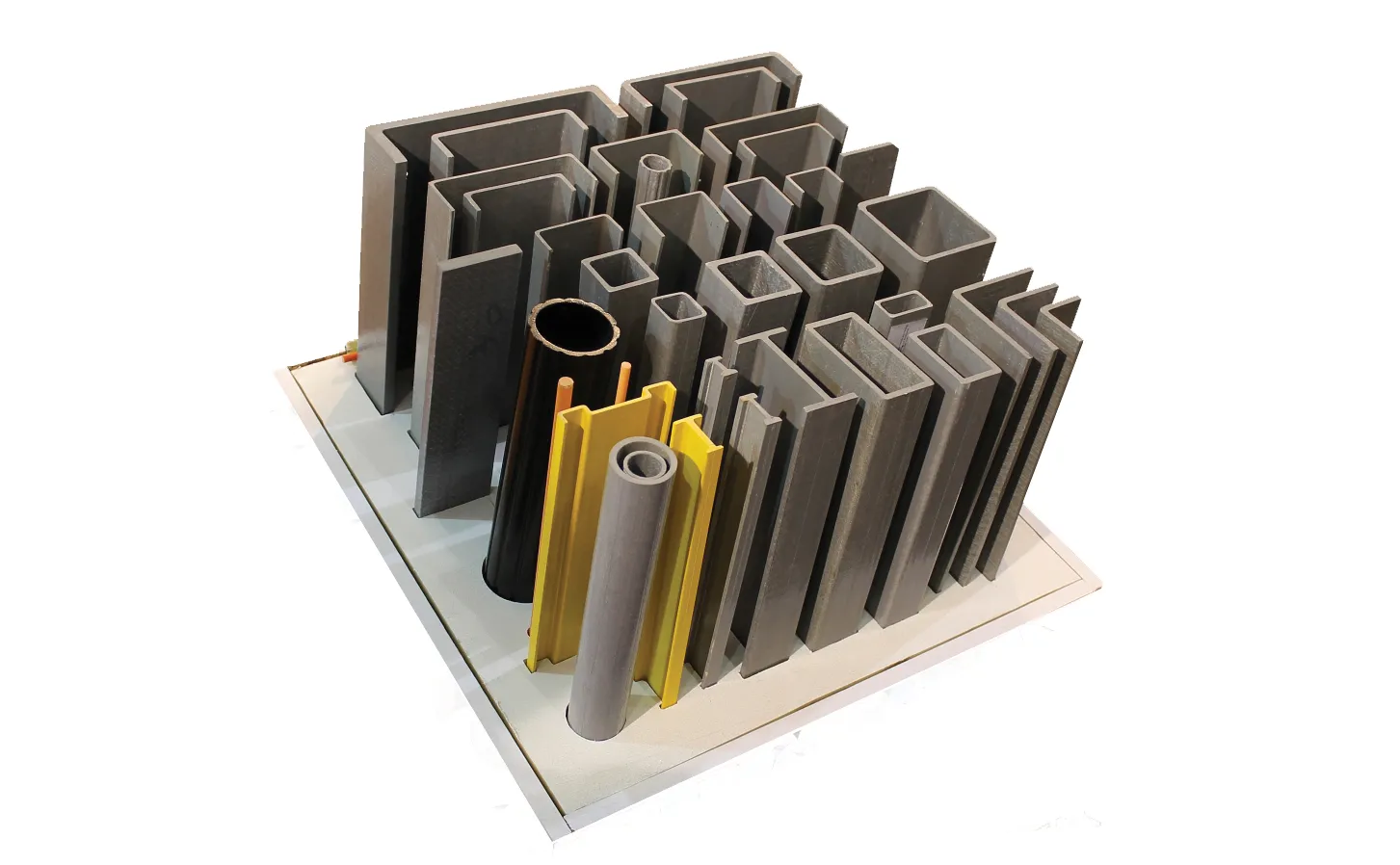

FRP U Channel Profile

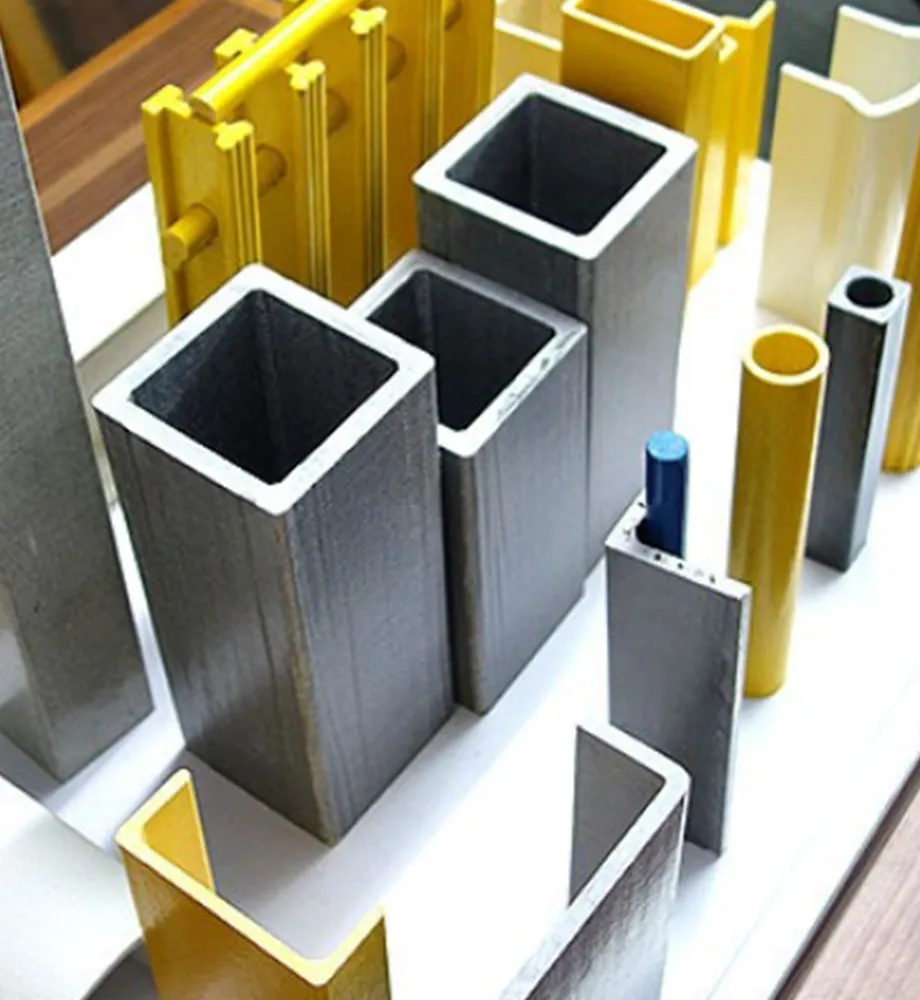

C Channel Cross Section
Channel Structural Installation

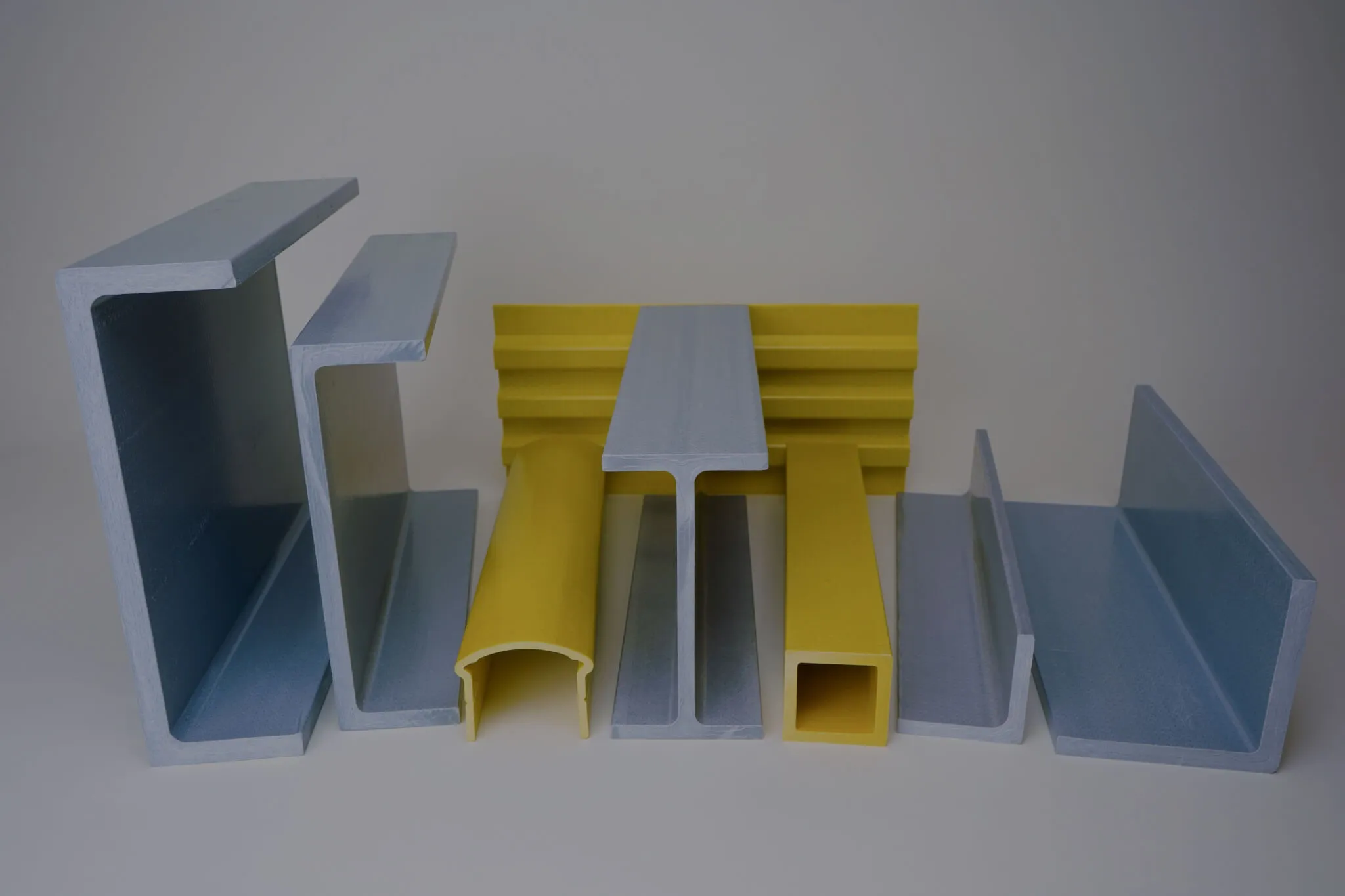

FRP Channel Product Range
OVERVIEW
High-Performance FRP Pultruded Channel Profiles
Our FRP pultruded channel profiles are manufactured using a continuous pultrusion process that combines high-strength E-glass fibers with premium polyester or vinyl ester resin systems. The result is a lightweight yet exceptionally strong structural member that outperforms traditional steel channels in corrosive environments while weighing up to 75% less.
Available in both C channel and U channel configurations, these profiles feature excellent dimensional stability, UV resistance, and electrical non-conductivity. The smooth surface finish and consistent cross-section tolerances make them ideal for structural framing, equipment supports, cable management systems, and solar panel mounting structures in demanding industrial applications.
With a fiberglass content of 60-70% by weight, our FRP channels deliver outstanding strength-to-weight ratios. The material is inherently resistant to chemicals, moisture, and UV degradation, eliminating the need for protective coatings or galvanization typically required for metal channels in harsh environments.
High-quality pultruded FRP profile
Specifications
Specifications
Technical Specifications
Dimensiones
Available in a wide range of standard C channel and U channel sizes with custom dimensions available upon request.
| Parameter | Value |
|---|---|
| Material | E-Glass Fiber / Polyester or Vinyl Ester Resin |
| Fiber Content | 60-70% by Weight |
| Tensile Strength (Longitudinal) | 207 MPa (30,000 psi) |
| Flexural Strength (Longitudinal) | 207 MPa (30,000 psi) |
| Flexural Modulus | 11 GPa (1.6 × 10⁶ psi) |
| Compressive Strength (Longitudinal) | 276 MPa (40,000 psi) |
| Density | 1.9 g/cm³ |
| Barcol Hardness | 45-55 |
Features
Features & Benefits
Features & Benefits
Superior Corrosion Resistance
FRP channels resist attack from acids, alkalis, salts, and chemicals that rapidly corrode steel and aluminum. Ideal for chemical plants, wastewater treatment, and marine environments with zero rust.
Exceptional Strength-to-Weight Ratio
Weighing approximately 75% less than steel yet delivering comparable structural strength. Reduces transportation costs, simplifies installation, and minimizes support structure requirements.
Electrical Non-Conductivity
Naturally non-conductive and non-magnetic, making FRP channels safe for use in electrical substations, telecommunications, and areas where electrical isolation is critical.
UV Resistance & Weather Durability
UV-stabilized resin systems ensure long-term performance in direct sunlight without degradation, cracking, or color fading. Maintains structural integrity in extreme weather conditions.
Low Maintenance & Lifecycle Cost
No painting, galvanizing, or protective coatings required. The inherent corrosion resistance eliminates ongoing maintenance costs and delivers a lower total cost of ownership over the product lifecycle.
Easy Fabrication & Installation
Can be cut, drilled, and machined using standard woodworking or carbide-tipped tools. Lightweight sections reduce handling effort and allow faster installation without heavy lifting equipment.
Applications
Applications
Chemical Plant Structures
FRP channels provide corrosion-resistant structural framing for chemical processing facilities, storage tank supports, and pipe racks.
Solar Panel Mounting
Lightweight and corrosion-resistant channels ideal for solar panel mounting frames in harsh outdoor environments.
Marine & Offshore
Non-corrosive channels for docks, piers, offshore platforms, and shipboard structures exposed to saltwater.
Electrical Infrastructure
Non-conductive channels for cable trays, equipment supports, and substation structures requiring electrical isolation.
