FRP I-Beam | Pultruded Fiberglass I-Beam Profiles
High-strength pultruded FRP I-beams for demanding structural applications — corrosion-proof, 75% lighter than steel, and electrically non-conductive.
Gallery

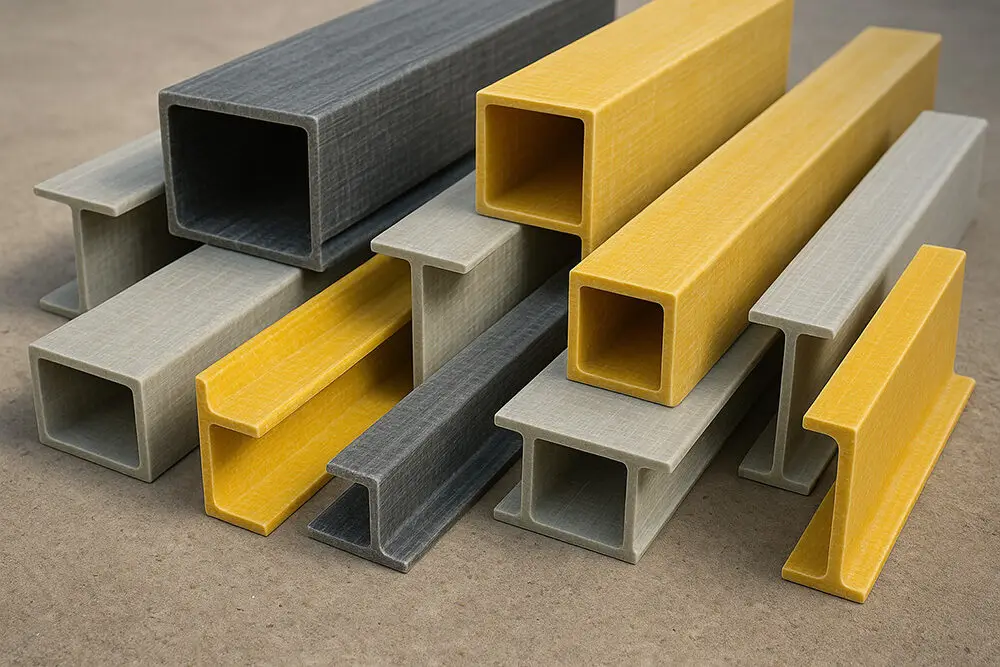

FRP I-Beam Profile
Side View

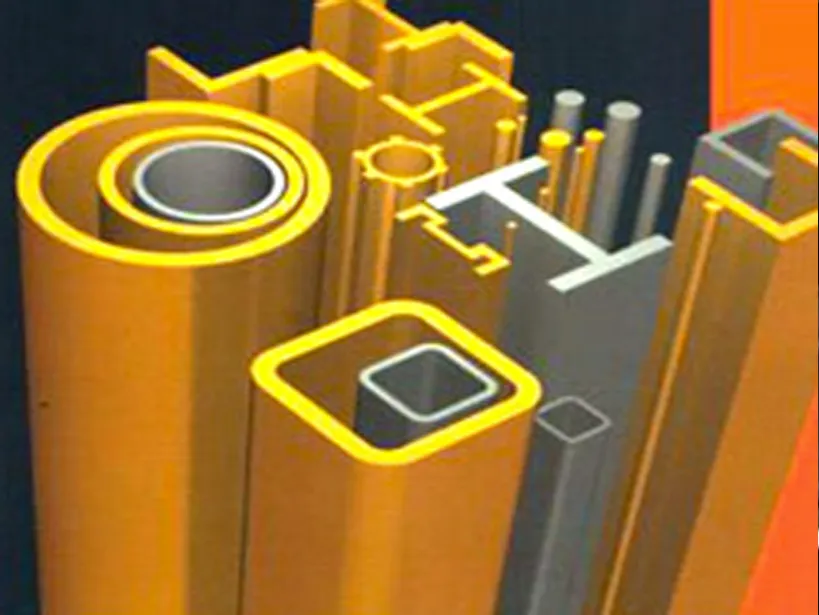

Size Comparison

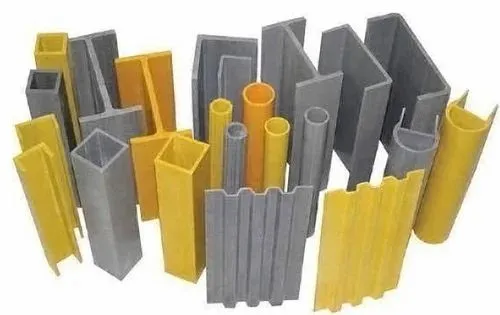

End Profile
OVERVIEW
Pultruded FRP I-Beam for Demanding Structural Applications
Our pultruded FRP I-beams are engineered to deliver exceptional strength-to-weight ratios in demanding structural applications. Manufactured using continuous E-glass fiber reinforcements embedded in a premium thermosetting resin matrix, these profiles offer superior mechanical performance while weighing up to 75% less than equivalent steel sections.
The I-beam's classic flanged profile geometry provides outstanding bending strength and rigidity, making it an ideal choice for load-bearing structures, mezzanine flooring systems, and chemical plant platforms. Its corrosion-resistant nature eliminates the need for protective coatings and ensures decades of maintenance-free service life in harsh environments.
Available in standard depths from 100 mm to 300 mm with custom lengths up to 12 meters, our FRP I-beams can be supplied with UV-resistant surface veils for outdoor exposure or fire-retardant resin systems for stringent fire safety compliance.
FRP I-Beam cross-section showing flange and web geometry
Specifications
Specifications
FRP I-Beam Dimensional Drawing
Standard dimensions in millimeters
Dimensiones
All dimensions in millimeters. Custom sizes and lengths available on request.
| Parameter | Value |
|---|---|
| Material System | E-Glass / Vinyl Ester or Polyester Resin |
| Tensile Strength | ≥ 240 MPa (ASTM D638) |
| Flexural Modulus | ≥ 14 GPa (ASTM D790) |
| Barcol Hardness | ≥ 40 (ASTM D2583) |
| Density | 1.7 – 2.0 g/cm³ |
| Dielectric Strength | ≥ 3.5 kV/mm (ASTM D149) |
| Service Temperature | -40°C to +120°C (-40°F to +248°F) |
| Flame Spread Index | ≤ 25 (ASTM E84, Class 1) |
Features
Features & Benefits
Features & Benefits
Exceptional Corrosion Resistance
Impervious to salts, acids, alkalis, and chemicals that rapidly degrade steel and aluminum. Ideal for wastewater treatment, chemical processing, and marine environments.
75% Lighter Than Steel
At only one-quarter the weight of steel, our FRP I-beams drastically reduce transportation costs and enable faster, safer installation without heavy lifting equipment.
Electrically Non-Conductive
Inherent dielectric properties eliminate grounding requirements and prevent electrical hazards in substations, electrical rooms, and rail applications.
Low Maintenance Lifecycle
No painting, galvanizing, or protective coatings needed. With a service life exceeding 25 years in aggressive environments, total ownership costs are dramatically lower.
Applications
Applications
Structural Platforms & Walkways
Heavy-duty load-bearing structures in chemical plants and water treatment facilities.
Mezzanine Flooring Systems
Intermediate load-bearing floors in warehouses and manufacturing facilities.
FRP Pultrusion Guide
Learn about the pultrusion process and profile types
Technical Specifications
Size charts, load data and material properties
RELATED PRODUCTS
Complementary FRP Profiles

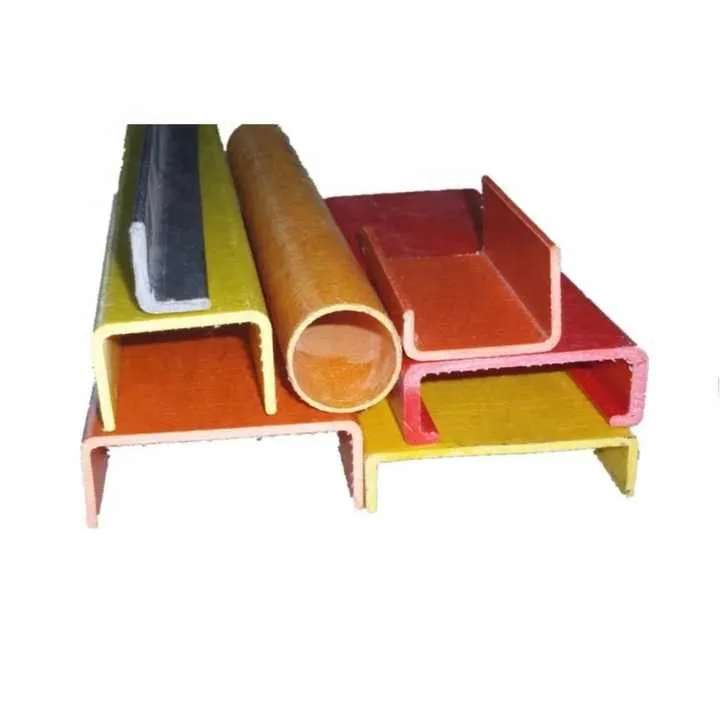

FRP Channel Profiles
C-channels and U-channels for structural framing and supports.
FRP Angle Profiles
L-shaped angle bars for bracing, brackets, and edge protection.

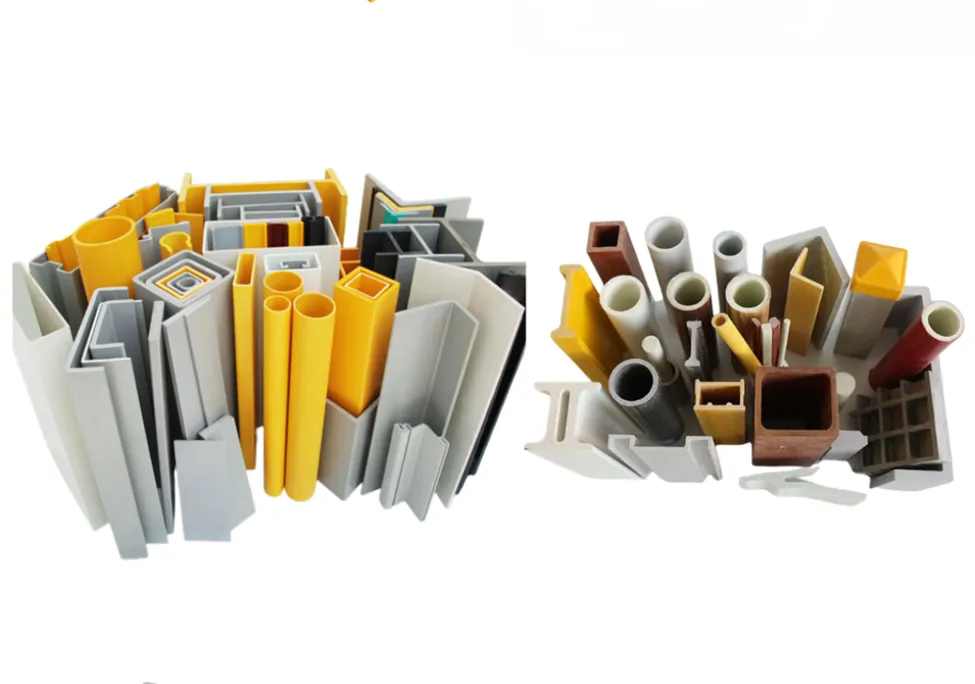

FRP Rebar — Complete Guide to Applications, Benefits & Specifications
