FRP Angle Profiles | Pultruded Fiberglass Angle Bars
Pultruded FRP angle bars offering exceptional strength and corrosion resistance for bracing, brackets, and structural framing applications.
Gallery

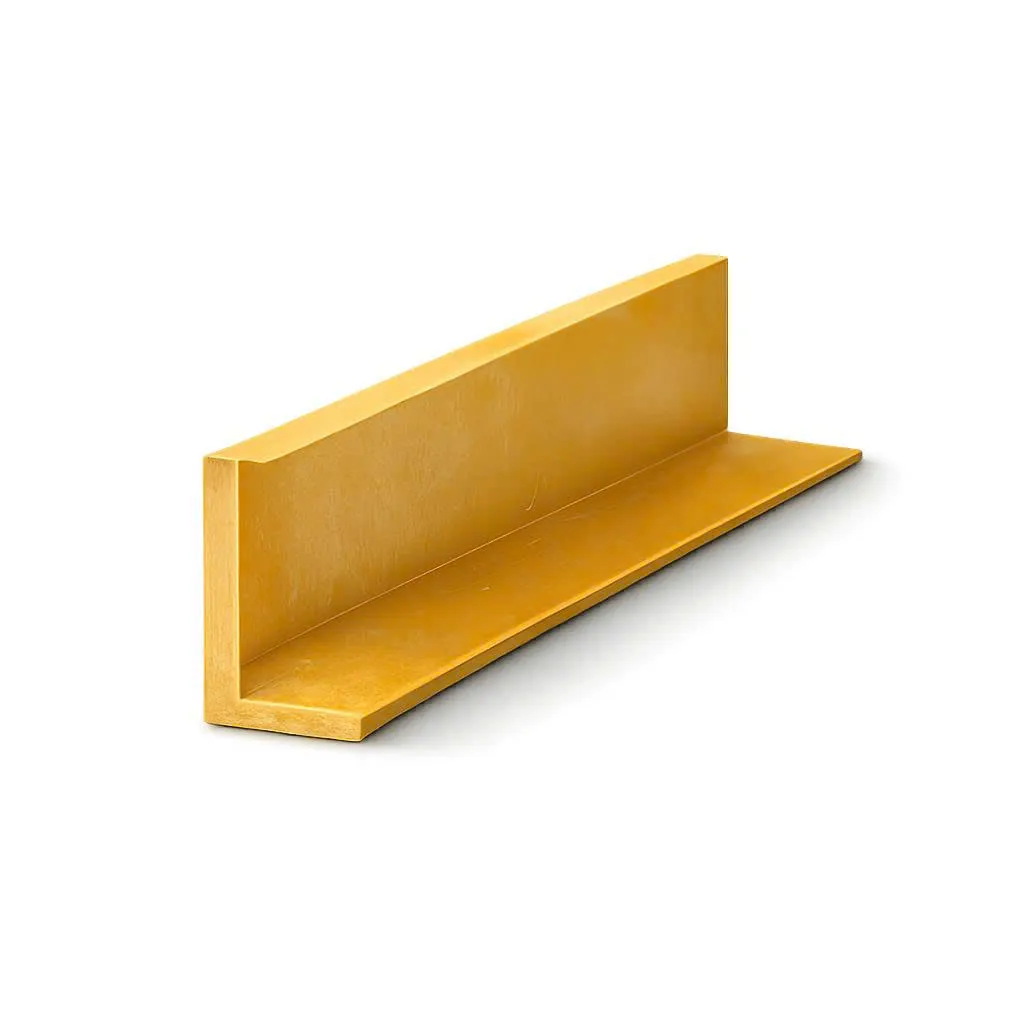

FRP Angle Profile - Full Length
FRP Angle Profile - Close Up
FRP Angle Profile - Installed
FRP Angle Profile - Cross Section
OVERVIEW
Pultruded FRP Angle Bars for Structural Bracing & Framing
Our pultruded FRP angle profiles are manufactured using continuous E-glass fiber reinforcement embedded in a thermosetting resin matrix, creating durable L-shaped structural members that combine high strength with exceptional corrosion resistance. These angle bars are the ideal replacement for steel angles in corrosive environments.
Available in both equal-leg and unequal-leg configurations, FRP angle profiles provide versatile solutions for bracing, brackets, edge protection, and structural framing. The lightweight nature of FRP — up to 75% lighter than steel — simplifies handling and installation while reducing structural load on supporting members.
Standard leg lengths range from 25 mm to 150 mm with wall thicknesses from 3 mm to 12 mm, supplied in standard 6-meter lengths. Custom sizes, UV-resistant surface veils, and fire-retardant resin formulations are available to meet specific project requirements.
FRP angle bar cross-section showing equal-leg geometry
Specifications
Specifications
FRP Angle Bar Dimensional Drawing
Equal and unequal leg configurations
Dimensiones
Leg lengths and wall thicknesses for equal-leg and unequal-leg angles.
| Parameter | Value |
|---|---|
| Material System | E-Glass / Vinyl Ester or Polyester Resin |
| Tensile Strength | ≥ 240 MPa (ASTM D638) |
| Flexural Strength | ≥ 340 MPa (ASTM D790) |
| Barcol Hardness | ≥ 40 (ASTM D2583) |
| Density | 1.7 – 2.0 g/cm³ |
| Leg Length Range | 25 mm to 150 mm (equal & unequal) |
| Wall Thickness | 3 mm to 12 mm |
| Service Temperature | -40°C to +120°C (-40°F to +248°F) |
Features
Features & Benefits
Features & Benefits
Superior Corrosion Resistance
FRP angle bars will not rust, rot, or corrode when exposed to moisture, chemicals, or saltwater, making them ideal for water treatment plants, chemical facilities, and coastal infrastructure.
Easy Fabrication On-Site
Can be cut, drilled, and machined using standard woodworking or metalworking tools, allowing quick modifications on-site without specialized equipment.
Non-Conductive & Non-Magnetic
Inherent electrical insulation and non-magnetic properties make FRP angles ideal for electrical substations, transformer enclosures, and MRI facility structures.
Low Thermal Conductivity
FRP's low thermal conductivity eliminates condensation issues and thermal bridging, improving energy efficiency in climate-controlled structures.
Applications
Applications

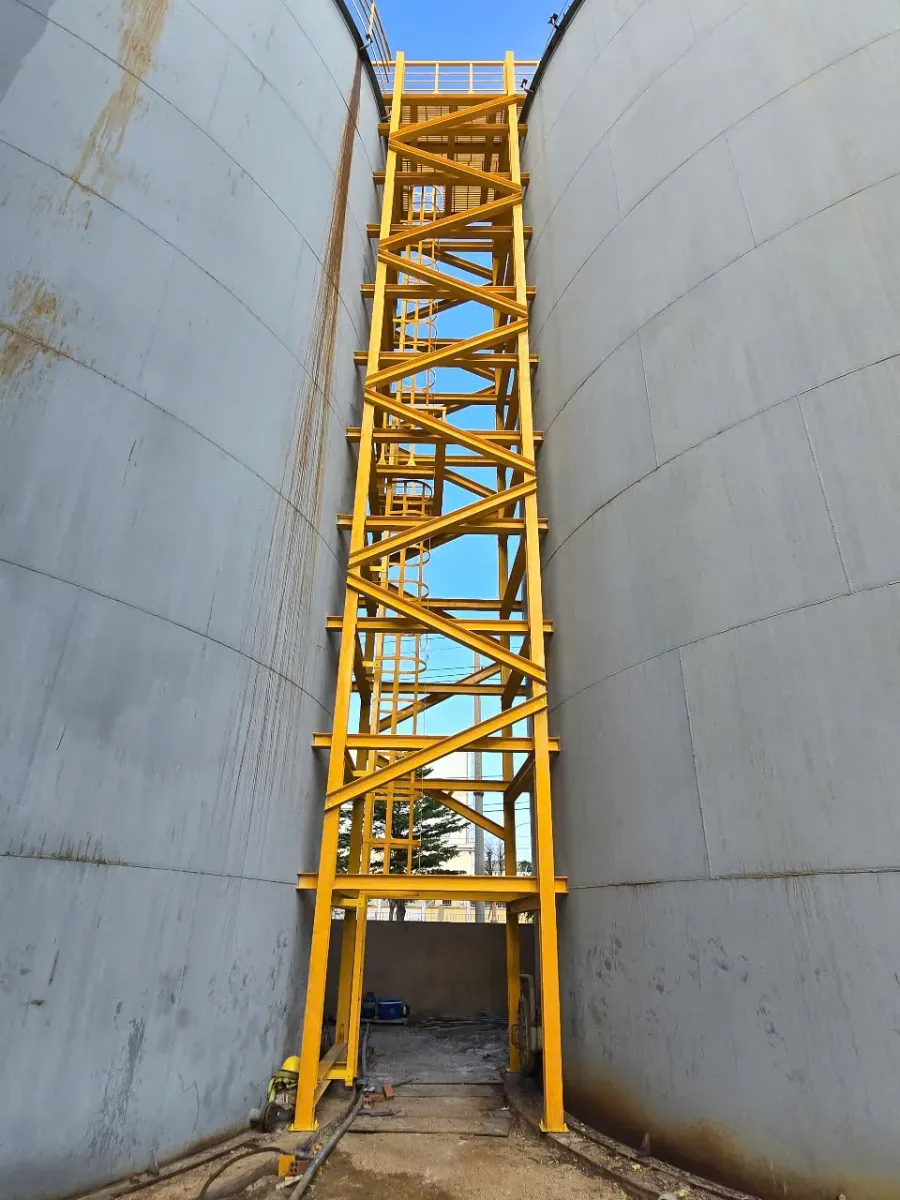

Structural Bracing & Supports
Diagonal bracing, gusset plates, and support brackets in corrosive environments.
Solar Mounting Structures
Angle brackets and frame supports for solar panel mounting systems.
FRP Pultrusion Guide
Learn about the pultrusion process and profile types
Technical Specifications
Size charts, load data and material properties
RELATED PRODUCTS
Related Products

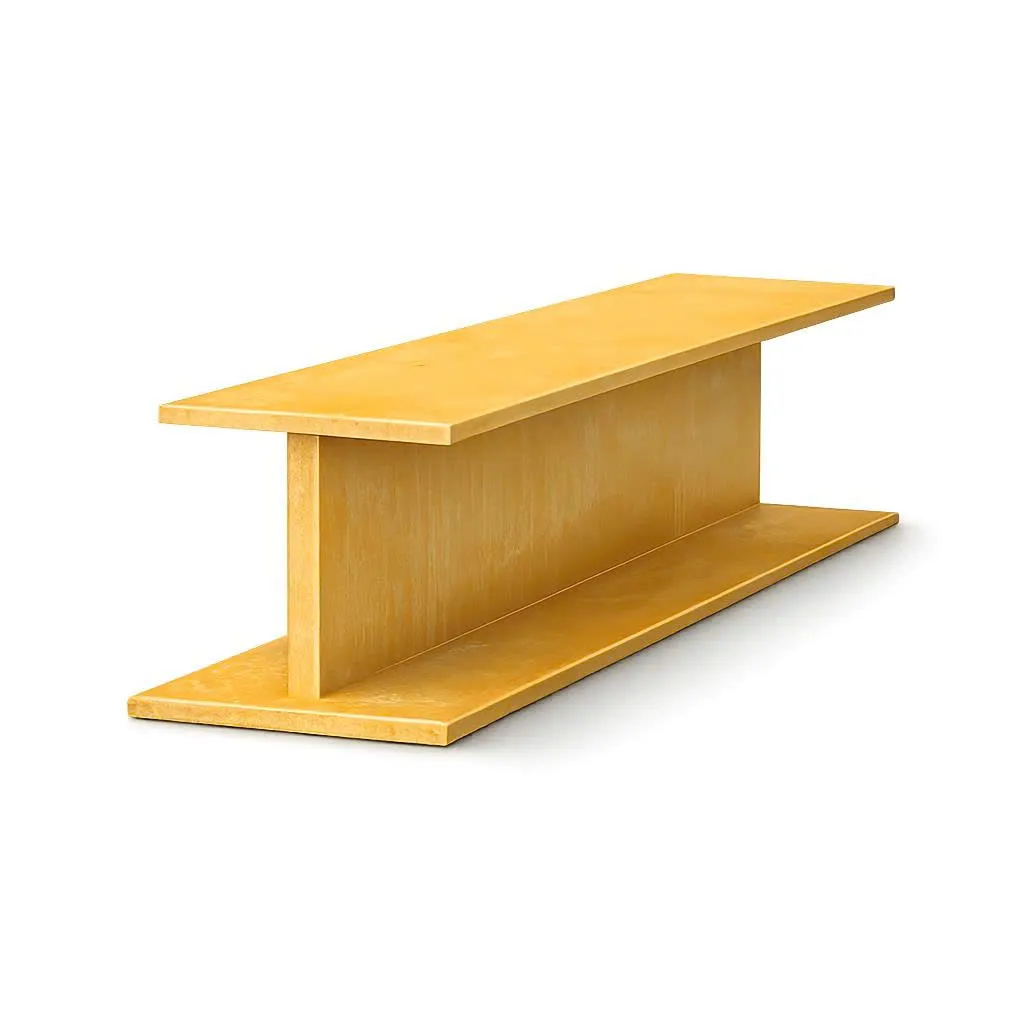

FRP I-Beam
High-strength pultruded fiberglass I-beam for heavy structural support and load-bearing applications

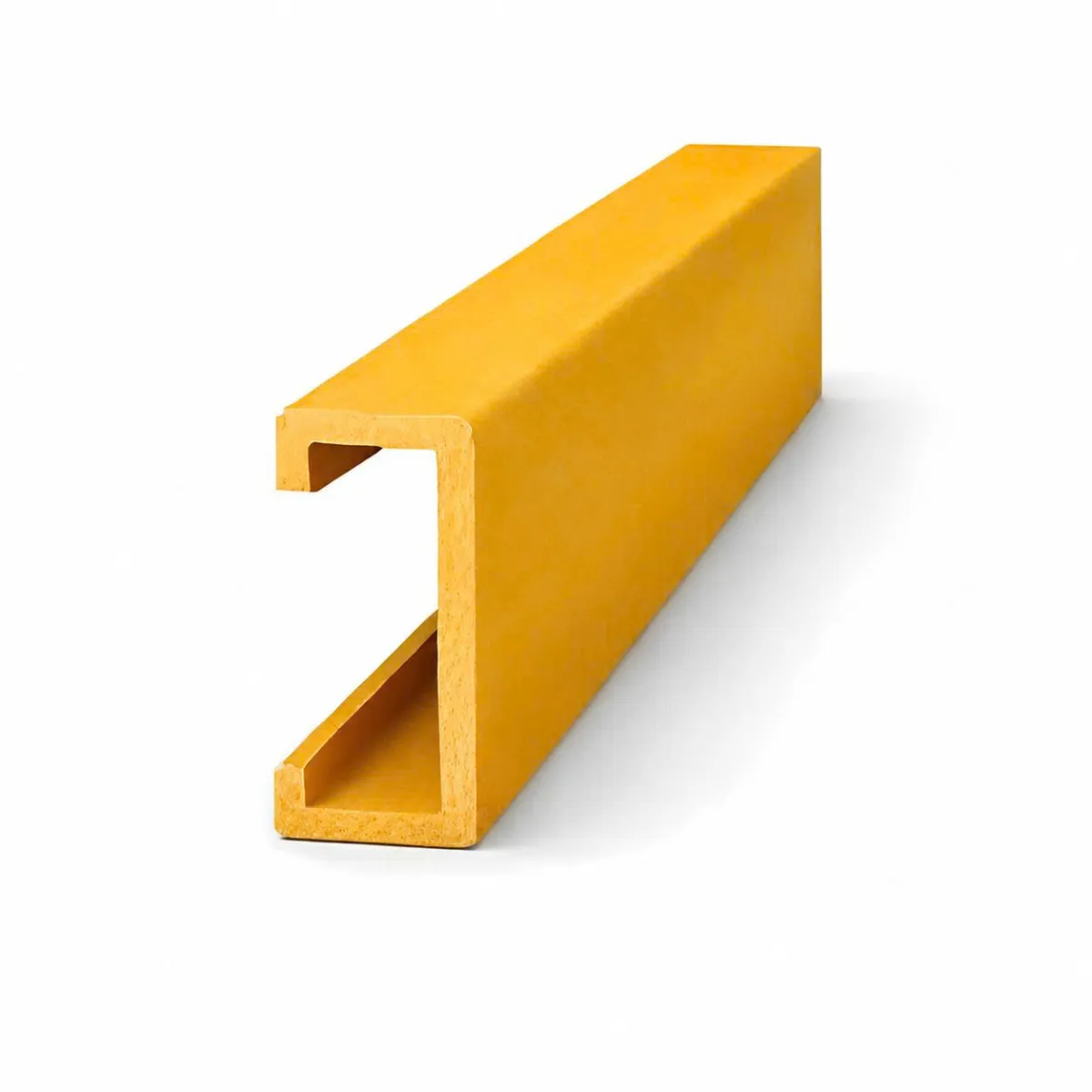

FRP Pultruded Channel
