FRP Handrails & Guardrails — Safety-Compliant Industrial Railing Systems
Corrosion-proof FRP handrail and guardrail systems designed for OSHA and IBC compliance. Lightweight, high-strength safety railings for industrial platforms, walkways, and stairways.
Gallery
FRP Handrail System – Platform Installation
FRP Guardrail – Walkway Safety
FRP Railing Connection Detail
FRP Elevated Walkway Guardrail
Overview
What Are FRP Handrails & Guardrails?
FRP (Fiberglass Reinforced Plastic) handrails and guardrails are high-strength safety railing systems manufactured using the pultrusion process. These systems provide durable, corrosion-resistant fall protection for industrial walkways, platforms, stairways, and elevated work areas where worker safety is paramount.
Unlike traditional steel or aluminum railings, FRP handrails offer exceptional resistance to chemical corrosion, moisture, and UV degradation without the need for painting or galvanizing. They are electrically non-conductive, non-sparking, and meet OSHA 1910.29 and IBC 1607.8 load requirements for industrial guardrail systems.
Available in multiple configurations including standard handrail, kneerail-and-toeboard, and heavy-duty guardrail designs, FRP railing systems come complete with all necessary post brackets, mounting hardware, and connection fittings for rapid modular installation.

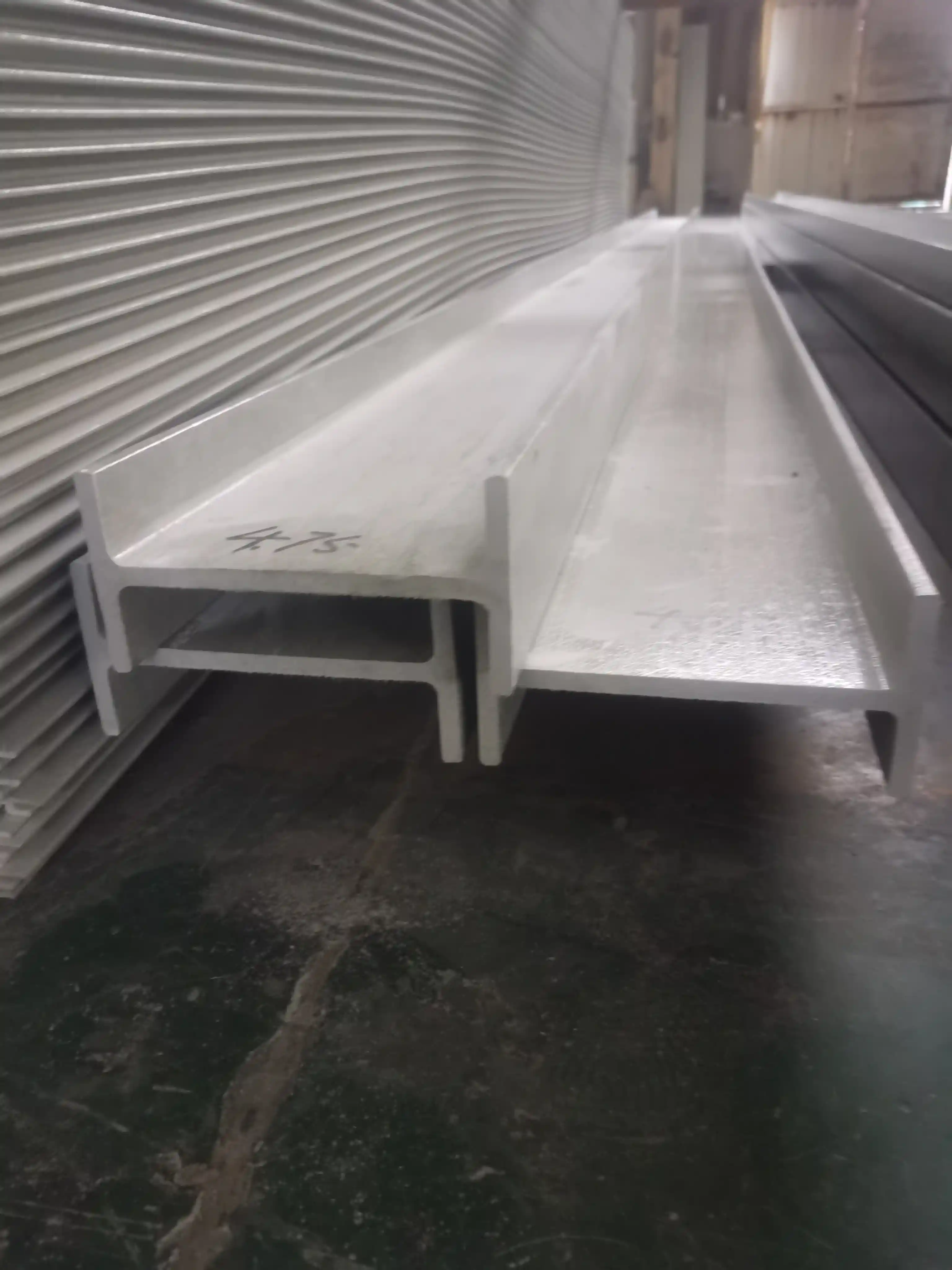

High-quality pultruded FRP profile
Specifications
Specifications
Technical Specifications
Dimensiones
Available in standard lengths and custom sizes.
| Parameter | Value |
|---|---|
| Material System | Pultruded FRP – Isophthalic Polyester / Vinyl Ester resin with UV stabilizers |
| Standard Guardrail Height | 42 inches (1,067 mm) per OSHA 1910.29 / IBC 1607.8 |
| Post Spacing | 4 ft (1,219 mm) standard / 6 ft (1,829 mm) max recommended |
| Top Rail Load Capacity | 200 lbs (890 N) concentrated load in any direction |
| Mid Rail / Kneerail Height | 21 inches (533 mm) from walking surface |
| Corrosion Resistance | Excellent – Resistant to acids, alkalis, solvents, salt spray, and UV |
| Temperature Range | -40°C to +120°C (continuous operation) |
| Color Options | Safety Yellow, Gray, Orange, Green, or Custom RAL |
Features
Features & Benefits
Features
OSHA & IBC Compliant
All FRP handrail and guardrail systems are designed to meet OSHA 1910.29, IBC 1607.8, and ANSI A1264.1 fall protection standards. Top rails withstand 200 lbs concentrated load in any direction.
Zero Maintenance – No Painting Required
FRP does not rust, rot, or corrode. The color is integrated throughout the material, eliminating the need for painting, galvanizing, or protective coatings over the entire service life.
Lightweight & Modular Design
Weighing up to 70% less than steel, FRP handrails are easy to transport and install. The modular railing system uses pre-drilled posts and slip-fit connections for rapid, tool-efficient assembly.
Electrically Non-Conductive & Non-Sparking
FRP is a natural electrical insulator and does not produce sparks upon impact. This makes it the safest choice for electrical substations, battery storage facilities, and hazardous chemical zones.
UV-Stabilized & Weather-Resistant
Formulated with UV inhibitors and light-stable pigments, FRP handrails maintain their color and structural properties even after years of direct sunlight exposure in outdoor environments.
Complete System with All Accessories
Each system includes top rails, mid rails, toe boards, posts, mounting brackets, and all necessary stainless steel hardware. Custom configurations for curved, angled, or sloped installations available.
Applications
Applications
Chemical & Petrochemical Plants
Corrosion-proof fall protection in aggressive chemical processing areas
Water & Wastewater Treatment
Moisture-resistant railings for tanks, walkways, and treatment basins
Power Plants & Substations
Non-conductive safety barriers for electrical infrastructure and generation
Marine & Offshore Platforms
Saltwater-resistant safety railings for docks, rigs, and vessels
